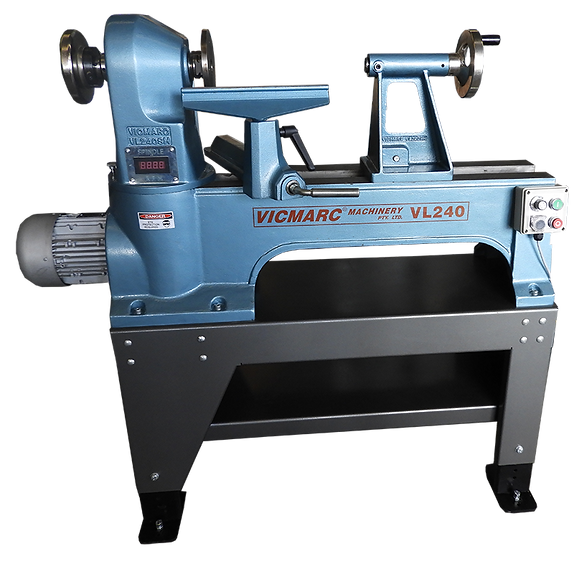

Vicmarc Lathe VL240 ASM EVS 1.5kw

Special Order

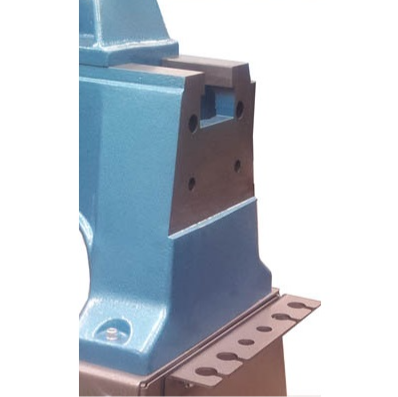

The VL240 Lathes have a swivel head feature which allows for the headstock to turn its normal straight position out to 90 degrees. There are four individual pin-lock positions at increments of 22.5 degrees which aid in turner comfort when turning inside vessels and bowls. It has an accurate locking feature which ensures that the lathe will return to perfect zero position. The VL240 has a very solid cast iron construction.

The lathe is mounted on a adjustable 4mm thick plate stand which has been designed with a 700mm wide footprint for stability and rigidity.  The adjustable legs allow you to customise the height to suit your ideal work height.

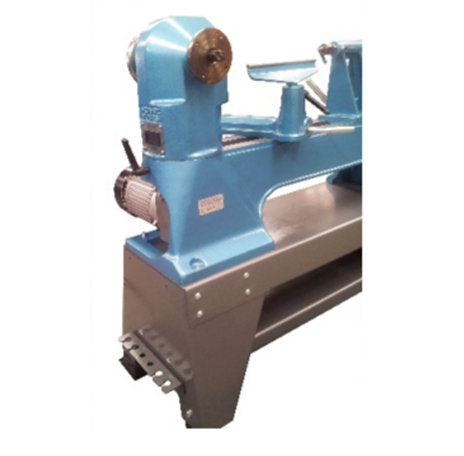

Photo 4 shows the Headstock positioned at 90 degrees.  The headstock can be positioned in 4 positions 0, 30, 60 & 90 degrees.  An outboard turning attachment can be purchased as an optional extra.

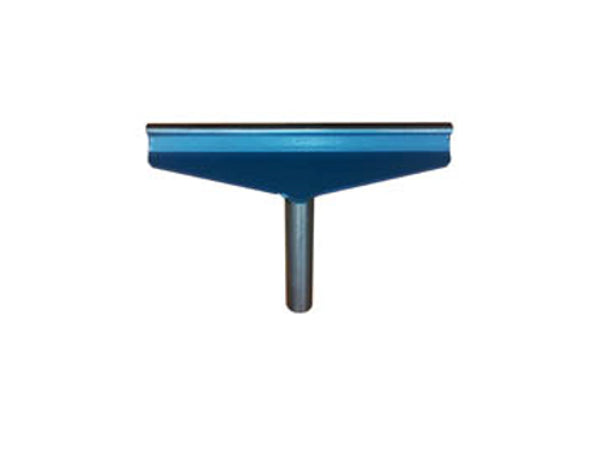

This lathe also includes an ergonomic Toolrest.

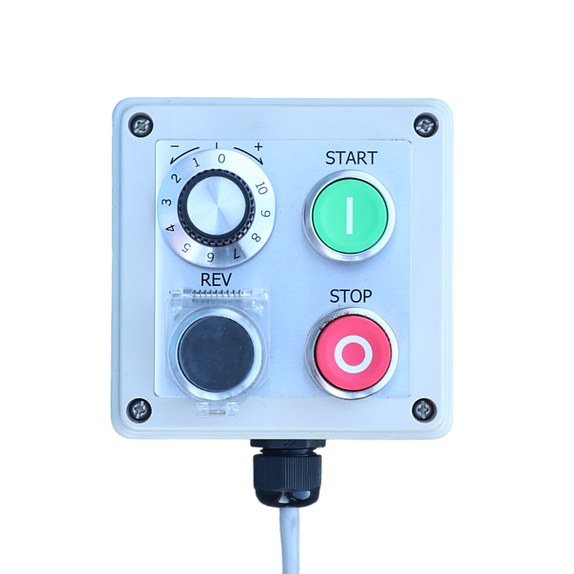

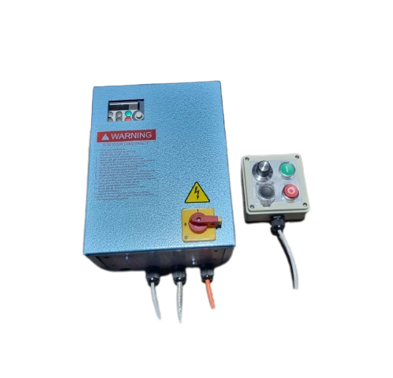

Separate electronic variable speed box that can be mounted away from the lathe and magnetic switch box that can be positioned anywhere you are working.

The VL240 lathe motor and headstock are fitted with 3 step pulleys which provide 3 ratios 1:1 for small to medium size work; 1:1.5 for medium to large work; and 1:3.2 for large work. For extra torque, simply change the Poly V Belt ratio to 1:3.2. The diagram in the above photos shows the maximum spindle RPM at each pulley step. Digital speed readout located on the headstock displays the actual spindle RPM regardless of which ratio the belt is positioned on.

Another great feature on this lathe is the indexing pin safety switch. This prevents accidental start-up whilst the indexing pin is engaged, preventing belt damage.
