Vicmarc Lathe VL200S EVS 1.5KW
Special Order
The VL200 Short Stand Mount EVS (Electronic Variable Speed) lathe is a more economically priced version of the VL200 ASM series Lathe. The electronic variable speed drive gives up to 200% on low rpm and the 1.5kW motor is more than adequate for this size lathe. The three-step pulleys provide 3 ratios 1:1 for small to medium size work, 1:1,5 for medium to large work; and 1:3 for large work. The diagram in the above photos shows the maximum spindle RPM at each pulley step.

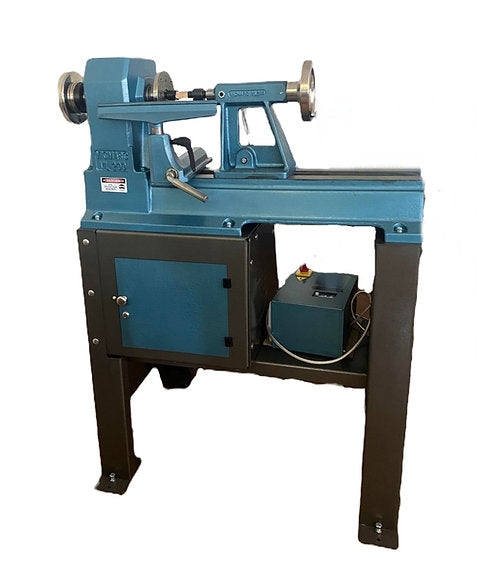

The cast iron lathe is mounted on a 4mm thick steel bolt together stand, which has been designed with a 700mm wide footprint for stability and rigidity.

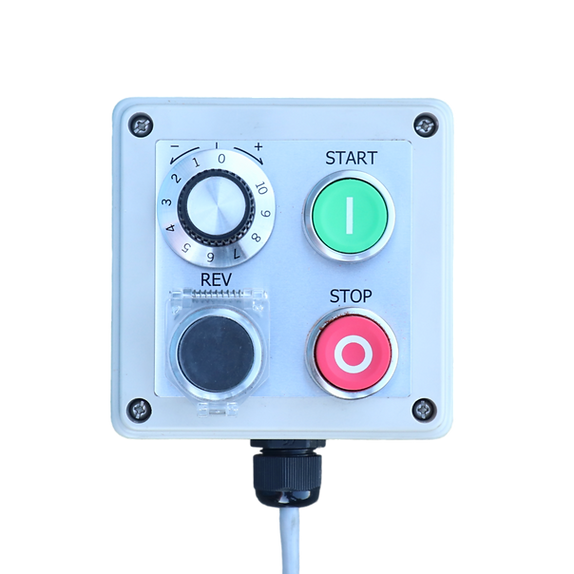

The VL200SM series lathes now come standard with a remote magnetic switch box.
PRODUCT INFO
| VL200 Short SM Specifications | |
| 200mm | Centre Height |
| 400mm | Swing over bed |
| 400mm | Distance between centres |
| 1150mm | Work Height (Bed Bottom to spindle centre) |
| 24 | Indexing holes |
| No. 2 MT | Headstock & Tailstock spindle |
| Taper Roller | Spindle Bearings |
| 3 Speeds | EVS 10 - 3000rpm |
| 30mm | Toolrest Post Diameter |
| 15mm | Hole Through Headstock Spindle |
| 10.5mm | Hole Through Tailstock Spindle |
| 75mm | Quill Travel |
| 190kg | Net Weight |
| 930x720x1240 | Length x Width x Height (mm) |
Vicmarc Lathe VL200S EVS 1.5KW is a special order and will ship as soon as it arrives from the supplier.
