Vicmarc Lathe Vl300S SM EVS 2.2kw (3 Horse Power)

Special Order

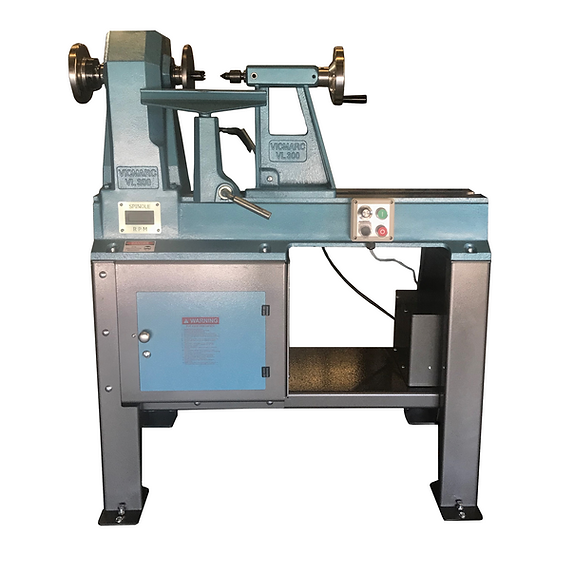

The VL300 Short Stand Mount EVS (Electronic Variable Speed) lathe is the little brother to the VL300 SM EVS 2.2kW lathe. It comes with a powerful 1.5kW motor (2HP). While the VL300 Short Stand Mount EVS (Electronic Variable Speed) lathe comes with a powerful 2.2kW motor (3HP).

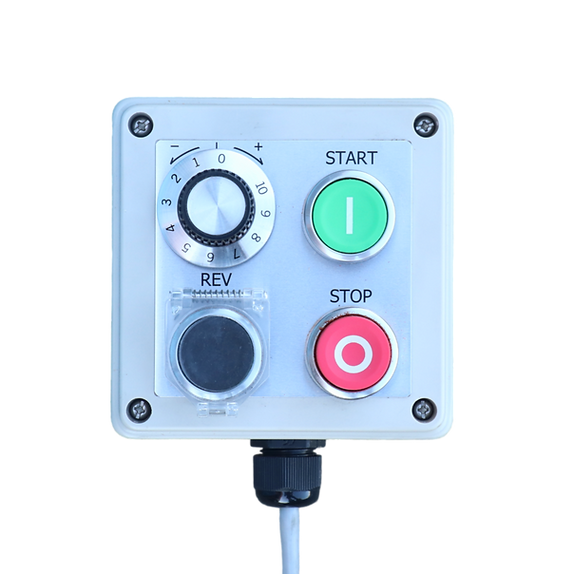

The electronic variable speed drive gives up to 200% torque on low rpm. The three-step pulleys provide 3 ratios 1:1 for small to medium size work; 1:1.5 for medium to large work; and 1:3 for large work. The diagram in the above photos shows the maximum spindle RPM at each pulley step. The lathe is fitted with a remote magnetic switch box (including reverse).

The cast iron lathe is mounted on a 4mm thick steel stand, which has been designed with a 700mm wide footprint for stability and rigidity.

All VL300 lathe models accept an extension bed at either end of the machine.  A 500mm or 1000mm bolt on extension bed is available and multiple extensions can be added on.

Note: with 1000mm extension bed you will require an extension bed leg.

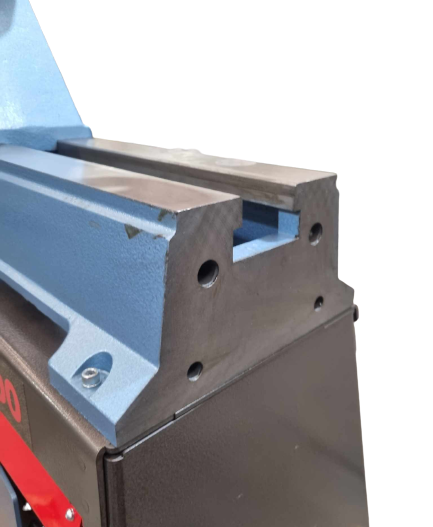

Precision machined face on both ends of the bed for bolt on extension bed or swing away tailstock support.

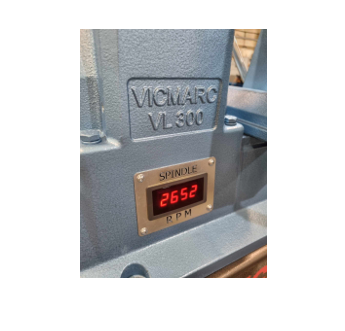

Digital speed readout located below the headstock that displays the actual spindle RPM.

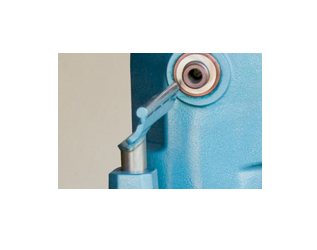

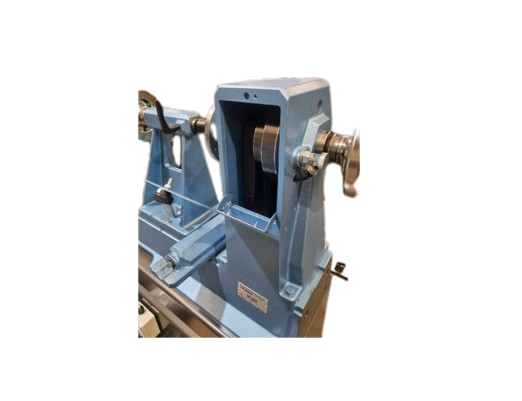

Hindged headstock door for ease of use and an ergonomic Toolrest.
